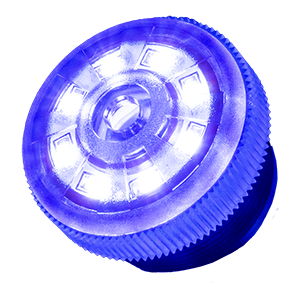

CLI-3224B-95T
32.8 mm, 12 Vdc, 95 dB, Panel Mount, Blue Illuminated, IP68, Audio Indicator Buzzer
Specifications
| Type | Description | |
|---|---|---|
| Driving Circuit | Yes |
|
| Rated Voltage | 12 |
|
| Input Type | Vdc |
|
| Sound Pressure (dB) | 95 |
|
| Mounting Style | Panel Mount |
|
| Curr. Consumption (mA) | 25 |
|
| Rated Frequency (Hz) | 3000 |
|
| Shape | Round |
|
| Illumination Color | Blue |
|
| Washable | No |
|
| IP Rating | IP68 |
|
| Dimensions LxWxH (mm) | 32.8 x 32.8 x 24 |
|
| Dimensions LxWxH (in) | 1.29 x 1.29 x 0.94 |
|
| Series | CLI-3224X-95T |
|
