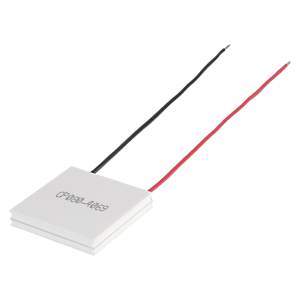

CP080-4069
CP080-4069
CP080-4069 Alternate View

CP080-4069

40 x 40 x 6.5 mm, 8 A Input with Leads, Multi-Stage Peltier (TEC) Modules

The CP080-4069 is an 8 A multi-stage Peltier module with two units stacked to achieve a high temperature delta of 100°C. This thermoelectric module is ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option.

Datasheet

Features

2-stage TEC module
Silicone sealed
Wide ΔTmax
Precise temperature control
Solid state construction

Specifications

Type Description
Select
Imax (A) 8
Vmax (V) 16.4
Qmax (Th=27°C) (W) 53.1
Qmax (Th=50°C) (W) 55.9
ΔTmax (Th=27°C) 90
ΔTmax (Th=50°C) 100
Resistance (Th=27°C) (Ohms ± 10%) 1.85
Resistance (Th=50°C) (Ohms ± 10%) 2.05
Dimensions LxWxH (mm) 40 x 40 x 6.9

Technical Docs

Datasheet
