CP28372-2

CP28372-2

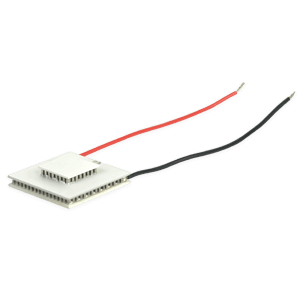

30 x 30 x 7.2 mm, 2.8 A Input with Leads, Multi-Stage Peltier (TEC) Module

The CP28-2 series is a 2.8 A two-stage Peltier module featuring a high temperature delta of 105°C. Thanks to its precise temperature control, this thermoelectric module series is ideally suited for high density, high power medical and industrial applications as well as refrigeration and sealed environments where forced air cooling is not an option.

Datasheet

Features

Two-stage thermoelectric cooler
Precise temperature control
Solid state construction
Wide ΔTmax

Specifications

Type Description
Select
Resistance (Ohms ± 10%) 5
Imax (A) 2.8
Vmax (V) 15.7
Qmax (Th=27°C) (W) 8.7
ΔTmax (Th=27°C) 95
Qmax (Th=50°C) (W) 9.6
ΔTmax (Th=50°C) 105
Dimensions LxWxH (mm) 30 x 30 x 7.2
Series CP28-2

Technical Docs

Datasheet 3D Model
