HSS07-C20-P274

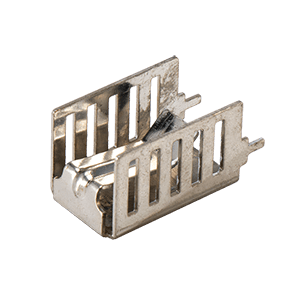

Stamped Heat Sink, TO-220, Copper, Surface Mount (SMT), 2.74 mm Horizontal Solder Pin

Datasheet

Specifications

Type Description
Select
Package Cooled TO-220
Mounting Style Surface Mount
Solder Pin Orientation Horizontal
Solder Pin Length (mm) 2.74
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 29.57
Thermal Resistance @ 1 W, nat conv (°C/W) 35.5
Thermal Resistance @ 1 W, 200 LFM (°C/W) 12.6
Thermal Resistance @ 1 W, 400 LFM (°C/W) 8.9
Power Dissipation @ 75°C ΔT, nat conv (W) 2.54
Material C1100
Material Finish Tin Plated
Dimensions LxWxH (mm) 21.66 x 13.21 x 13.08
Dimensions LxWxH (in) 0.85 x 0.52 x 0.52
