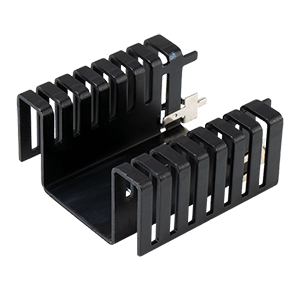

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 8.26 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 7.59 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 10.6 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 3.7 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 3.2 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 9.89 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 49.31 x 48.26 x 24.13 |
|
| Dimensions LxWxH (in) | 1.94 x 1.9 x 0.95 |
|
