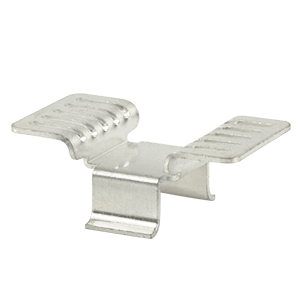

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-263 |
|
| Mounting Style | Surface Mount |
|
| Solder Pin Orientation | No Pin |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 35.71 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 40.16 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 8.15 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 6.53 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 2.1 |
|
| Material | C1100 |
|
| Material Finish | Tin Plated |
|
| Dimensions LxWxH (mm) | 14.99 x 25.91 x 9.52 |
|
| Dimensions LxWxH (in) | 0.59 x 1.02 x 0.37 |
|
