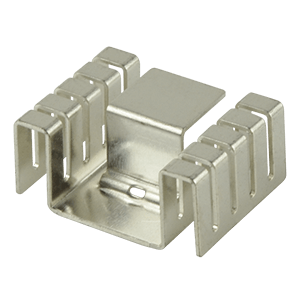

HSS-C2540-SMT-TR

HSS-C2540-SMT-TR Bottom View

HSS-C2540-SMT-TR

Stamped Heat Sink, TO-220, Copper, Surface Mount (SMT), No Pin

Datasheet

Specifications

Type Description
Select
Package Cooled TO-263
Mounting Style Surface Mount
Solder Pin Orientation No Pin
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 19.74
Thermal Resistance @ 1 W, nat conv (°C/W) 21.9
Thermal Resistance @ 1 W, 200 LFM (°C/W) 5.5
Thermal Resistance @ 1 W, 400 LFM (°C/W) 4
Power Dissipation @ 75°C ΔT, nat conv (W) 3.8
Material C1100
Material Finish Tin Plated
Dimensions LxWxH (mm) 19.38 x 25.4 x 11.43
Dimensions LxWxH (in) 0.76 x 1 x 0.45
