HSS-B20-NP-06

HSS-B20-NP-06 Bottom View

HSS-B20-NP-06

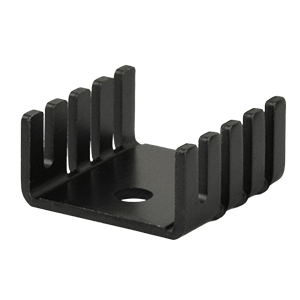

Stamped Heat Sink, TO-220, Aluminum, PCB, No Pin

Datasheet

Specifications

Rth = Thermal Resistance, PD = Power Dissipation

Type Description
Select
Package Cooled TO-220
Mounting Style PCB
Solder Pin Orientation No Pin
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 26.32
Thermal Resistance @ 1 W, nat conv (°C/W) 31.94
Thermal Resistance @ 1 W, 200 LFM (°C/W) 7.51
Thermal Resistance @ 1 W, 400 LFM (°C/W) 5.84
Power Dissipation @ 75°C ΔT, nat conv (W) 2.85
Material AL1050
Material Finish Black Anodized
Dimensions LxWxH (mm) 19 x 19 x 9.52
Dimensions LxWxH (in) 0.75 x 0.75 x 0.37
