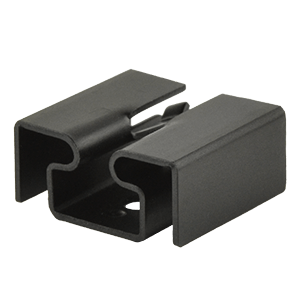

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | No Pin |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 20.59 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 27.22 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 5.39 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 4.51 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 3.64 |
|
| Material | AL5052 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 19 x 21.1 x 10 |
|
| Dimensions LxWxH (in) | 0.75 x 0.83 x 0.39 |
|
| Series | HSS-B20-02 |
|
