HSS-B20-NP-01

HSS-B20-NP-01 Bottom View

HSS-B20-NP-01

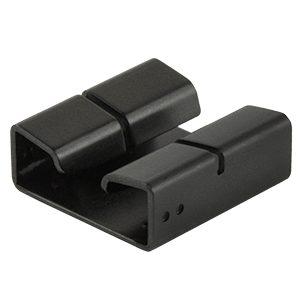

Stamped Heat Sink, TO-220, Aluminum, PCB, No Pin

Datasheet

Specifications

Rth = Thermal Resistance, PD = Power Dissipation

Type Description
Select
Package Cooled TO-220
Mounting Style PCB
Solder Pin Orientation No Pin
Thermal Resistance @ 75°C ΔT, nat conv (°C/W) 18.29
Thermal Resistance @ 1 W, nat conv (°C/W) 21.92
Thermal Resistance @ 1 W, 200 LFM (°C/W) 7.05
Thermal Resistance @ 1 W, 400 LFM (°C/W) 5.56
Power Dissipation @ 75°C ΔT, nat conv (W) 4.1
Material AL5052
Material Finish Black Anodized
Dimensions LxWxH (mm) 20 x 19.7 x 7.7
Dimensions LxWxH (in) 0.79 x 0.78 x 0.3
