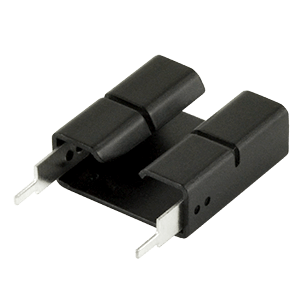

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 8.5 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 22.06 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 26.05 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 7.46 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 5.2 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 3.4 |
|
| Material | AL5052 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 20 x 19.7 x 7.7 |
|
| Dimensions LxWxH (in) | 0.79 x 0.78 x 0.3 |
|
