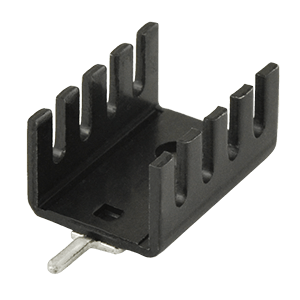

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 6.35 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 29.09 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 33.89 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 10.49 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 6.81 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 2.58 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 19.05 x 13.21 x 12.7 |
|
| Dimensions LxWxH (in) | 0.75 x 0.52 x 0.5 |
|
| Series | HSS-B20-0635 |
|
