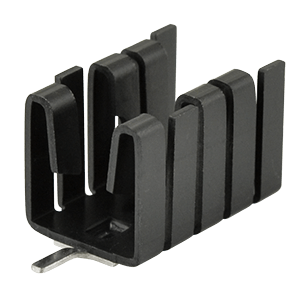

Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|
| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 6.1 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 25.86 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 31.07 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 5.72 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 4.1 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 2.9 |
|
| Material | AL5052 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 19 x 13 x 12.7 |
|
| Dimensions LxWxH (in) | 0.75 x 0.51 x 0.5 |
|
