Specifications
Rth = Thermal Resistance, PD = Power Dissipation
| Type | Description | |
|---|---|---|

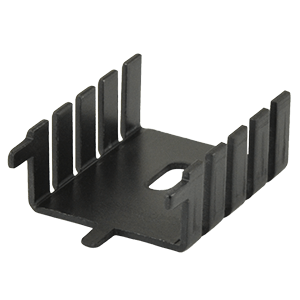

| Package Cooled | TO-220 |
|
| Mounting Style | PCB |
|
| Solder Pin Orientation | Horizontal |
|
| Solder Pin Length (mm) | 5.08 |
|
| Thermal Resistance @ 75°C ΔT, nat conv (°C/W) | 15.83 |
|
| Thermal Resistance @ 1 W, nat conv (°C/W) | 20.74 |
|
| Thermal Resistance @ 1 W, 200 LFM (°C/W) | 5.87 |
|
| Thermal Resistance @ 1 W, 400 LFM (°C/W) | 4.22 |
|
| Power Dissipation @ 75°C ΔT, nat conv (W) | 4.74 |
|
| Material | AL1050 |
|
| Material Finish | Black Anodized |
|
| Dimensions LxWxH (mm) | 29.97 x 25.4 x 12.7 |
|
| Dimensions LxWxH (in) | 1.18 x 1 x 0.5 |
|
| Series | HSS-B20-07 |
|
