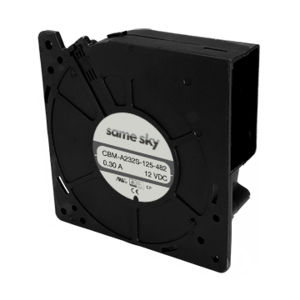

Features
| Sleeve bearing construction |
| 120 x 120 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Sleeve |
|
| Air Flow (CFM) | 18.45 |
|
| Rated Speed (RPM) | 2000 |
|
| Static Pressure (inH2O) | 0.6 |
|
| Noise (dBA) | 45.8 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 180 |
|
| Tachometer Signal | No |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 120 x 120 x 32 |
|
| Series | CBM-120S |
|
