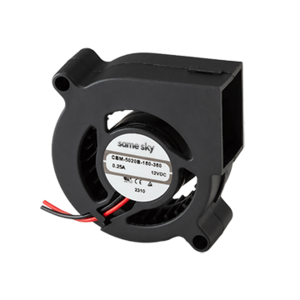

CBM-5020B-160-360-20
12 V, 0.27 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, Dc Centrifugal Blower
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 6.14 |
|
| Rated Speed (RPM) | 6000 |
|
| Static Pressure (inH2O) | 0.64 |
|
| Noise (dBA) | 36 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 270 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 49.2 x 49.8 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CBM-50B |
|
