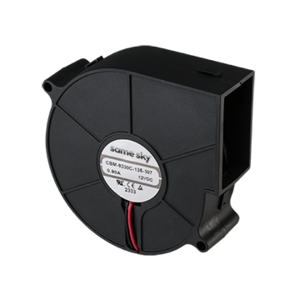

CBM-9330C-120-346-20
12 V, 180 mA, 93 x 93 x 30 mm, omniCOOL™, Dc Centrifugal Blower, Tachometer Signal
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this centrifugal blower bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 12.03 |
|
| Rated Speed (RPM) | 2000 |
|
| Static Pressure (inH2O) | 0.29 |
|
| Noise (dBA) | 34.6 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 180 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 93 x 93 x 30 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CBM-93C |
|
