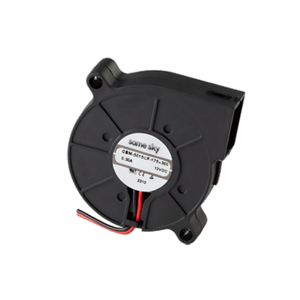

CBM-5015CF-175-459-22
12 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOL™ Dc Centrifugal Blower
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this centrifugal blower bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 4.75 |
|
| Rated Speed (RPM) | 7500 |
|
| Static Pressure (inH2O) | 1.24 |
|
| Noise (dBA) | 45.9 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 330 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 51.6 x 51.2 x 15 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CBM-50CF |
|
