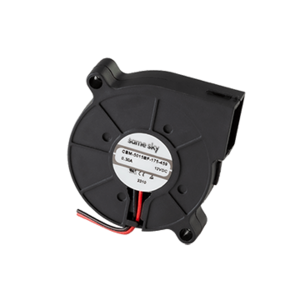

CBM-5015BF-035-293-22
5 V, 0.11 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, Dc Centrifugal Blower
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 2.22 |
|
| Rated Speed (RPM) | 3500 |
|
| Static Pressure (inH2O) | 0.27 |
|
| Noise (dBA) | 29.3 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 110 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 51.6 x 51.2 x 15 |
|
| Series | CBM-50BF |
|
