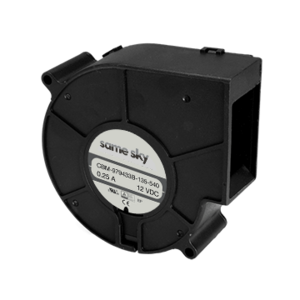

CBM-979433B-130-507-22
12 V, 540 mA, 97 x 94 x 33 mm, Dc Centrifugal Blower, Tachometer Signal, PWM Control Signal
Features
| Dual ball bearing construction |
| 97 x 94 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Air Flow (CFM) | 20.48 |
|
| Rated Speed (RPM) | 3000 |
|
| Static Pressure (inH2O) | 0.66 |
|
| Noise (dBA) | 50.7 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 540 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 97 x 94 x 33 |
|
| Series | CBM-97B-2 |
|
