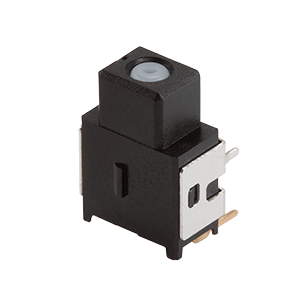

MPB02-1B00-R-D
SPST, Through Hole, 0 mm Push, Off-(ON), Right Angle Terminal, 5.08 mm Pitch, Push Button Switch
Specifications
| Type | Description | |
|---|---|---|
| Circuit | SPST |
|
| Pole | Single |
|
| Switch Function | Off-(ON) |
|
| Push Length (mm) | 0 |
|
| Pitch (mm) | 5.08 |
|
| Cap Style | No Cap |
|
| Mounting Style | Through Hole |
|
| Operating Force (gf) | 250 ± 100 |
|
| Dimensions LxWxH (in) | 0.38 x 0.22 x 0.51 |
|
| Termination | Right Angle |
|
| Current Rating (mA) | 14 |
|
| Dimensions LxWxH (mm) | 9.8 x 5.9 x 13.1 |
|
| Voltage Rating (Vdc) | 28 |
|
| Washable | No |
|
| Series | MPB02 |
|
| Contact Resistance (mΩ) | 50 |
|
| Insulation Resistance (MΩ at 500 Vdc) | 500 |
|
| Switch Type | Push Button |
|
| Withstanding Voltage (Vac for 1 min) | 500 |
|
