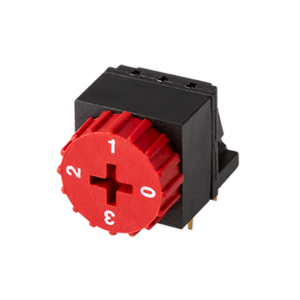

RDS6-4S-1011-3-RA-254-D
4 Position, Through Hole, 2.54 mm Pitch, Right Angle, Flush Cross Actuator w/ Cap, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Pitch (mm) | 2.54 |
|
| Actuator Type | Rotary |
|
| Number of Positions | 4 |
|
| Actuator Level | Rotary |
|
| Actuator Style | Cross |
|
| Mounting Style | Through Hole |
|
| Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Voltage Rating (Vdc) | 42 |
|
| Switching Current Rating (mA) | 150 |
|
| Non-Switching Current Rating (mA) | 200 |
|
| Dimensions LxWxH (mm) | 10 x 11.5 x 10 |
|
| Termination | PC Pin |
|
| Cap | Yes |
|
| Orientation | Vertical |
|
| Dimensions LxWxH (in) | 0.393 x 0.452 x 0.393 |
|
| Switch Type | DIP |
|
| Washable | No |
|
| Series | RDS6-1011-RA |
|
