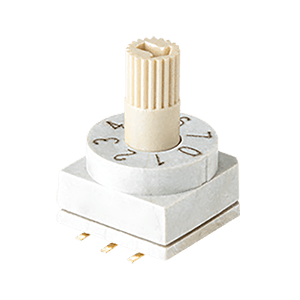

RDS4-8S-1065-73-SMT-TR-67
8 Position, Surface Mount, 2.54 mm Pitch, IP67, Flush 7.3 mm Raised Actuator, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Pitch (mm) | 2.54 |
|
| Actuator Type | Rotary |
|
| Number of Positions | 8 |
|
| Actuator Level | Raised |
|
| Actuator Style | Arrow |
|
| Mounting Style | SMT |
|
| Switching Voltage Rating (Vdc) | 42 |
|
| Non-Switching Voltage Rating (Vdc) | 42 |
|
| Switching Current Rating (mA) | 150 |
|
| Non-Switching Current Rating (mA) | 200 |
|
| Dimensions LxWxH (mm) | 10 x 10 x 6.5 |
|
| Termination | Gull Wing |
|
| Cap | No |
|
| Orientation | Horizontal |
|
| IP Rating | IP67 |
|
| Dimensions LxWxH (in) | 0.393 x 0.393 x 0.256 |
|
| Switch Type | DIP |
|
| Washable | No |
|
| Series | RDS4-1065-SMT-67 |
|
