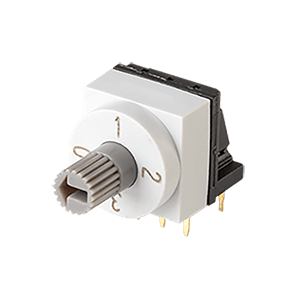

RDS4-4S-1012-73-RA-508-D-67
4 Position, Through Hole, 5.08 mm Pitch, IP67, Right Angle, 7.3 mm Raised Actuator, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Pitch (mm) | 5.08 |
|
| Actuator Type | Rotary |
|
| Number of Positions | 4 |
|
| Actuator Level | Raised |
|
| Actuator Style | Arrow |
|
| Mounting Style | Through Hole |
|
| Switching Voltage Rating (Vdc) | 50 |
|
| Non-Switching Voltage Rating (Vdc) | 50 |
|
| Switching Current Rating (mA) | 100 |
|
| Non-Switching Current Rating (mA) | 100 |
|
| Dimensions LxWxH (mm) | 10 x 12.3 x 10 |
|
| Termination | PC Pin |
|
| Cap | No |
|
| Orientation | Vertical |
|
| IP Rating | IP67 |
|
| Dimensions LxWxH (in) | 0.393 x 0.484 x 0.393 |
|
| Switch Type | DIP |
|
| Washable | No |
|
| Series | RDS4-1012-RA-67 |
|
