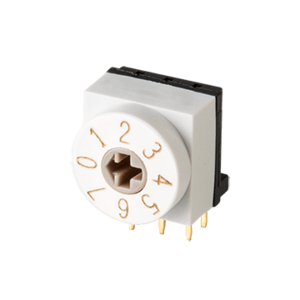

RDS3-8S-1012-RA-508-D

RDS3-8S-1012-RA-508-D
RDS3-8S-1012-RA-508-D Alternate View

RDS3-8S-1012-RA-508-D

8 Position, Through Hole, 5.08 mm Pitch, Right Angle, Flush Cross Actuator, DIP Switch

Datasheet

Specifications

Type Description
Select
Pitch (mm) 5.08
Actuator Type Rotary
Number of Positions 8
Actuator Level Flush
Actuator Style Cross
Mounting Style Through Hole
Switching Voltage Rating (Vdc) 42
Non-Switching Voltage Rating (Vdc) 42
Switching Current Rating (mA) 150
Non-Switching Current Rating (mA) 200
Dimensions LxWxH (mm) 10 x 9.5 x 10
Termination PC Pin
Cap No
Orientation Horizontal
Dimensions LxWxH (in) 0.393 x 0.374 x 0.393
Operating Temp Range (°C) *-40 ~ 85
Switch Type DIP
Washable No
Series RDS3-1012-RA

Technical Docs

Datasheet 3D Model
