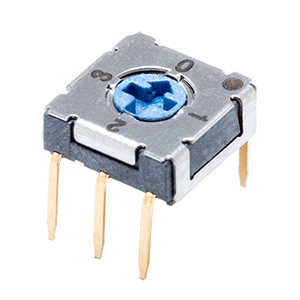

RDS-10S-7229-A-D
10 Position, Through Hole, 5.08 mm Pitch, IP67, Flat Arrow Rotary Actuator, DIP Switch
Specifications
Type | Description | |
---|---|---|
Pitch (mm) | 5.08 |
|
Actuator Type | Rotary |
|
Number of Positions | 10 |
|
Actuator Level | Flat |
|
Actuator Style | Arrow |
|
Mounting Style | Through Hole |
|
Switching Voltage Rating (Vdc) | 50 |
|
Non-Switching Voltage Rating (Vdc) | 50 |
|
Switching Current Rating (mA) | 100 |
|
Non-Switching Current Rating (mA) | 100 |
|
Termination | PC Pin |
|
Cap | No |
|
Orientation | Horizontal |
|
IP Rating | IP67 |
|
Dimensions LxWxH (mm) | 7.2 x 7.2 x 2.9 |
|
Dimensions LxWxH (in) | 0.28 x 0.28 x 0.11 |
|
Switch Type | DIP |
|
Washable | No |
|
Series | RDS-7229-D |
|
