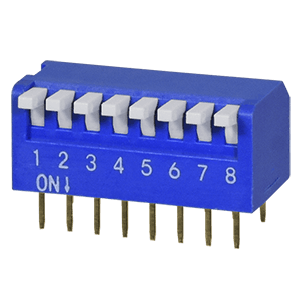

DS02C-254-1L-08BE
8 Position, Through Hole, 2.54 mm Pitch, Raised Piano Slide Actuator, Convex Bottom, Long Pin, DIP Switch
Specifications
| Type | Description | |
|---|---|---|
| Actuator Level | Raised |
|
| Pitch (mm) | 2.54 |
|
| Actuator Type | Piano |
|
| Bottom | Convex |
|
| Pin | Long |
|
| Mounting Style | Through Hole |
|
| Switching Voltage Rating (Vdc) | 24 |
|
| Non-Switching Voltage Rating (Vdc) | 50 |
|
| Number of Positions | 8 |
|
| Switching Current Rating (mA) | 25 |
|
| Non-Switching Current Rating (mA) | 100 |
|
| Termination | PC Pin |
|
| Cap | No |
|
| Orientation | Vertical |
|
| Dimensions LxWxH (mm) | 21.89 x 10.8 x 9.6 |
|
| Dimensions LxWxH (in) | 0.86 x 0.43 x 0.38 |
|
| Operating Temp Range (°C) | -40 ~ 85 |
|
| Switch Type | DIP |
|
| Washable | No |
|
| Series | DS02-254 |
|
