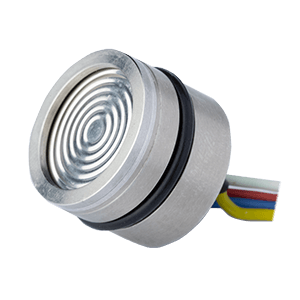

PS02-G350KP-4W
19 mm, 3.3 V Excitation, 35 kPa, 4 Wires, I²C Output, Gauge Pressure Sensor
The PS02 series is a family of piezo-based pressure sensors offering absolute, gauge, and sealed gauge pressure types and an operating pressure range from 0 kPa to 6.0 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature digital I2C outputs, 3.3 V excitation ratings, and 4-wire terminations. With accuracy of ±0.5% and an operating temperature range from -40 to 105°C, the PS02 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Digital I²C |
|
| Pressure Type | Gauge |
|
| Operating Pressure (kPa) | 35 |
|
| Operating Pressure (PSI) | 5 |
|
| Output Voltage (V) | 3.3 |
|
| Excitation | 3.3 |
|
| Accuracy | ±0.5% |
|
| Input Type | V |
|
| Termination | Wire Leads |
|
| Dimensions LxWxH (mm) | 19 x 19 x 14 |
|
| Series | PS02 |
|
| Dimensions LxWxH (in) | 0.75 x 0.75 x 0.55 |
|
| Maximum Pressure (MPa) | 2.5 |
|
| Operating Temp. (°C) | -40 ~ 105 |
|
| Sensor Type | Pressure |
|
