AMT22-V Kit

AMT22-V Kit
Standard and Wide Base
Sleeves (2~8 mm)
Tool A and C
AMT22 Back and Switch View

AMT223B-V

Right-Angle (Axial) Orientation, 14-Bit Single-Turn Absolute Resolution

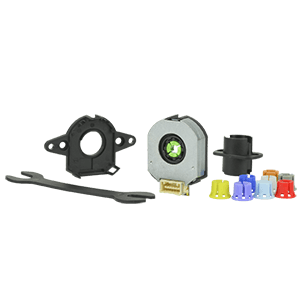

The AMT22-V all-in-one incremental encoder kit offers 18 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set zero position via SPI command or Same Sky’s AMT Viewpoint GUI, the AMT22-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

12-bit absolute (4096) position or 14-bit absolute (16384) position
SPI communication
Resilient to dust, dirt and oil
Low current draw
18 encoders in one package
Multiple mounting options
High accuracy
Simple assembly
9 different shaft sizes from 2 mm to 8 mm
-40 to +105°C temperature range
Single-turn or multi-turn output options

Specifications

Type Description
Select
Absolute Resolution 14-bit single-turn
Input Voltage (Vdc) 3.8 ~ 5.5
Operating Temp. (°C) -40 ~ 105
Orientation Axial
Speed, Max. (RPM) 4000, 8000
Series AMT22
