AMT222C-V
Straight (Radial) Orientation, 12-Bit Multi-Turn Absolute Resolution

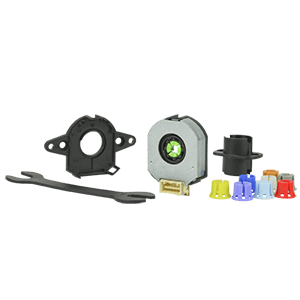

The AMT22-V all-in-one incremental encoder kit offers 18 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set zero position via SPI command or Same Sky’s AMT Viewpoint GUI, the AMT22-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
| 12-bit absolute (4096) position or 14-bit absolute (16384) position |
| SPI communication |
| Resilient to dust, dirt and oil |
| Low current draw |
| 18 encoders in one package |
| Multiple mounting options |
| High accuracy |
| Simple assembly |
| 9 different shaft sizes from 2 mm to 8 mm |
| -40 to +105°C temperature range |
| Single-turn or multi-turn output options |
