PTN15-F200NB20

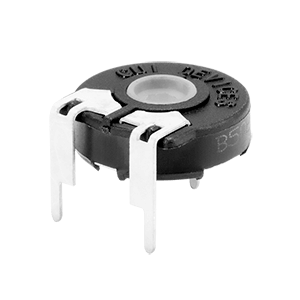

15 mm, 200 kΩ, Vertical, Linear, Notch Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Vertical
Resistance (kΩ) 200
Resistance Ω 200
Resistance Tolerance (%) 20
Operating Temp Range (°C) -10 ~ 70
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Notch
Shaft Style Shaftless
Series PTN15
