PTN15-F05NB20

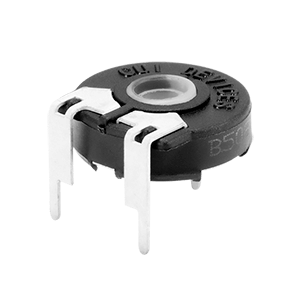

15 mm, 5 kΩ, Vertical, Linear, Notch Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Vertical
Resistance (kΩ) 5
Resistance Ω 5
Resistance Tolerance (%) 20
Operating Temp Range (°C) -10 ~ 70
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Notch
Shaft Style Shaftless
Series PTN15
