PTN15-E25SB20

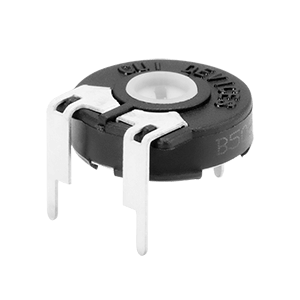

15 mm, 25 kΩ, Vertical, Linear, Screwdriver Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Vertical
Resistance (kΩ) 25
Resistance Ω 25
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Screwdriver
Shaft Style Shaftless
Series PTN15
