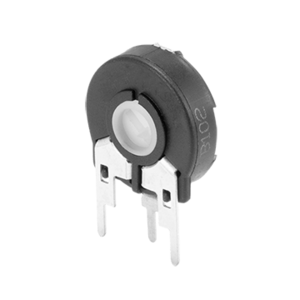

PTN15-C100SB20

 PTN15-C100SB20
PTN15-C100SB20 Alternate View

PTN15-C100SB20

15 mm, 100 kΩ, Vertical, Linear, Screwdriver Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 100
Resistance Ω 100
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Screwdriver
Shaft Style Shaftless
Series PTN15
