PTN15-C100NB20

PTN15-C100NB20
PTN15-C100NB20 Alternate View

PTN15-C100NB20

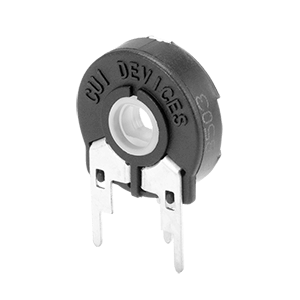

15 mm, 100 kΩ, Horizontal, Linear, Notch Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 100
Resistance Ω 100
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Notch
Shaft Style Shaftless
Series PTN15
