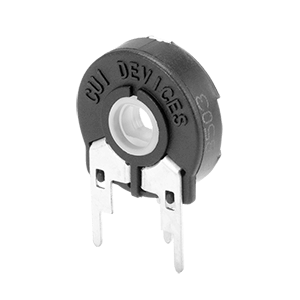

PTN15-C05NB20

PTN15-C05NB20
PTN15-C05NB20 Alternate View

PTN15-C05NB20

15 mm, 5 kΩ, Horizontal, Linear, Notch Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 5
Resistance Ω 5
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Notch
Shaft Style Shaftless
Series PTN15
