PTN15-C01SB20

PTN15-C01SB20

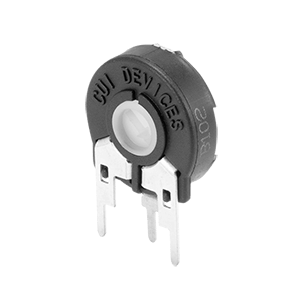

PTN15-C01SB20 Alternate View

PTN15-C01SB20

15 mm, 1 kΩ, Horizontal, Linear, Screwdriver Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 1
Resistance Ω 1
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Screwdriver
Shaft Style Shaftless
Series PTN15
