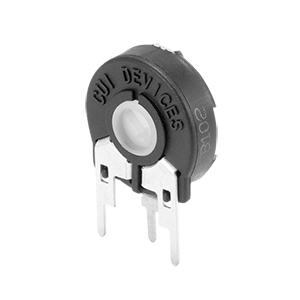

PTN15-A500SB20
15 mm, 500 kΩ, Horizontal, Linear, Screwdriver Shaftless Trimmer Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Trimmer |
|
| Size (mm) | 15 |
|
| Termination | Straight Pc Pins |
|
| Taper | Linear |
|
| Orientation | Horizontal |
|
| Resistance (kΩ) | 500 |
|
| Resistance Ω | 500 |
|
| Resistance Tolerance (%) | 20 |
|
| Bushing | No Bushing |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Power (W) | 0.15 |
|
| Rotation (°) | 265 |
|
| Rotor | Screwdriver |
|
| Shaft Style | Shaftless |
|
| Series | PTN15 |
|
