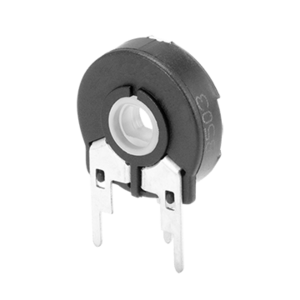

PTN15-A10NB20

 PTN15-A10NB20
PTN15-A10NB20 Alternate View

PTN15-A10NB20

15 mm, 10 kΩ, Horizontal, Linear, Notch Shaftless Trimmer Potentiometer

Datasheet

Specifications

Type Description
Select
Potentiometer Type Trimmer
Size (mm) 15
Termination Straight Pc Pins
Taper Linear
Orientation Horizontal
Resistance (kΩ) 10
Resistance Ω 10
Resistance Tolerance (%) 20
Bushing No Bushing
Detent No Detent
Mounting Type Through Hole
Power (W) 0.15
Rotation (°) 265
Rotor Notch
Shaft Style Shaftless
Series PTN15
