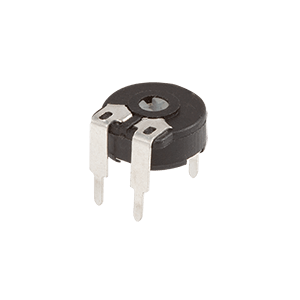

PTN10-E50SB20
10 mm, 50 kΩ, Linear, Through Hole, Vertical, Shaftless Screwdriver Trimmer Potentiometer
Same Sky’s PTN10 series is a shaftless trimmer potentiometer featuring a wide variety of terminal configurations and resistance ratings from 1 to 2000 kΩ. The series offers linear tapers and carries a power rating of 0.15 W, mechanical angle of 235°, and an operating temperature range from -10 to 70°C. With a rotational life of 10,000 cycles, this shaftless trimmer potentiometer is ideal for control inputs for electronic circuits and audio control applications.
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Trimmer |
|
| Size (mm) | 10 |
|
| Termination | Straight Pc Pins |
|
| Taper | Linear |
|
| Orientation | Vertical |
|
| Resistance (kΩ) | 50 |
|
| Resistance Tolerance (%) | 20 |
|
| Number of Turns | 1 |
|
| Bushing | No Bushing |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Power (W) | 0.15 |
|
| Rotation (°) | 235 |
|
| Rotor | Screwdriver |
|
| Shaft Style | Shaftless |
|
| Series | PTN10 |
|
