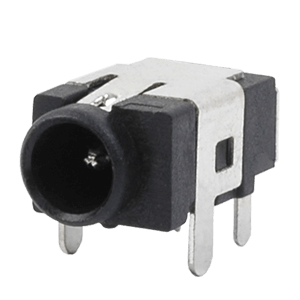

PJ-056
1.0 x 3.8 mm, 2.0 A, Horizontal, Through Hole, Shielded, 3 Conductor, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1 |
|
| Outer Diameter (mm) | 3.8 |
|
| Insertion Depth/Length (mm) | 7.3 |
|
| Mounting Style | Through Hole |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 2 |
|
| Number of Conductors | 3 |
|
| Internal Switch(es) | 0 |
|
| Shielding | Yes |
|
| Dimensions LxWxH (mm) | 11 x 6.6 x 5.1 |
|
