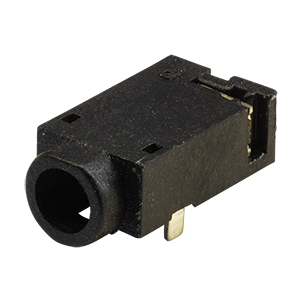

PJ-041-SMT-TR
0.65 x 2.6 mm, 1.0 A, Horizontal, Surface Mount (SMT), Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 0.65 |
|
| Outer Diameter (mm) | 2.6 |
|
| Insertion Depth/Length (mm) | 7.7 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 1 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 0 |
|
| Shielding | No |
|
| Dimensions LxWxH (mm) | 9.5 x 5 x 3 |
|
