CDM809-03A-FW-F010-050-67

CDM809-03A-FW-F010-050-67
CDM809-03A-FW-F010-050-67 Alternate View

CDM809-03A-FW-F010-050-67

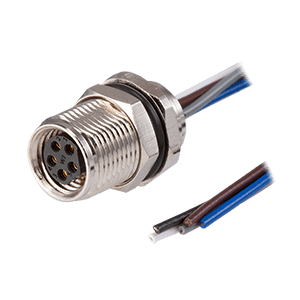

3 Pins, Panel Mount, Wire Front Fastened M10 x 0.75, A-Coding, Screw Copper Alloy, IP67, M8 Female Circular Connector Jack

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Connector Size M8
Connector Style Female
Mounting Style Panel Mount
Termination Wire Leads
Fastening Type Threaded Front
Coding A
Number of Positions 3
Voltage Rating (Vac) 60
Current Rating (A) 3
Pin Size (mm) 1
Mounting Thread Size M10 x 0.75
Shell Size (mm) 8
Shell Finish Brass with Nickel Plating
Contact Finish Gold Plated
Shielding No
Color Silver
Operating Temp Range (°C) -26 ~ 80
IP Rating IP67
Series CDM809

Technical Docs

Datasheet 3D Model

Other Resources

Connector Mating Guide
