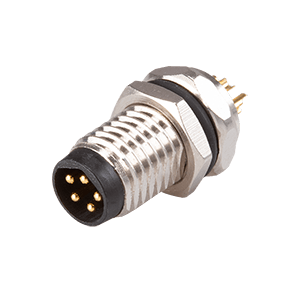

CDM814-05B-MT-F810-67
5 Pins, Panel Mount, Crimped Pc Pins, Front Fastened M10 x 0.75, B-Coding, Screw Copper Alloy, IP67, M8 Male Circular Connector Jack
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Connector Size | M8 |
|
| Connector Style | Male |
|
| Mounting Style | Panel Mount |
|
| Termination | Solder Terminal |
|
| Fastening Type | Threaded Front |
|
| Coding | B |
|
| Number of Positions | 5 |
|
| Voltage Rating (Vac) | 30 |
|
| Current Rating (A) | 3 |
|
| Pin Size (mm) | 1 |
|
| Mounting Thread Size | M10 x 0.75 |
|
| Shell Size (mm) | 8 |
|
| Shell Finish | Brass with Nickel Plating |
|
| Contact Finish | Gold Plated |
|
| Shielding | No |
|
| Color | Silver |
|
| Operating Temp Range (°C) | -25 ~ 80 |
|
| IP Rating | IP67 |
|
| Series | CDM814 |
|
