CDM1270-04D-FW-R9-500-67

CDM1270-04D-FW-R9-500-67
CDM1270-04D-FW-R9-500-67 Alternate View
CDM1270-04D-FW-R9-500-67 Alternate View

CDM1270-04D-FW-R9-500-67

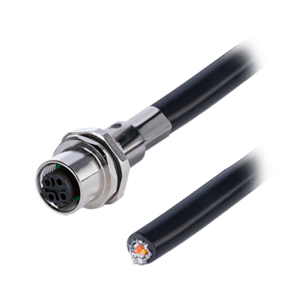

4 Pins, Panel Mount, Wire Cable Jacket, Rear Fastened PG9, D-Coding, Screw Copper Alloy, PUR, Black, M12 Female Circular Connector Jack

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Connector Size M12
Connector Style Female
Termination Wire Leads
Voltage Rating (Vac) 60
Current Rating (A) 1.5
Coding D
Number of Positions 4
IP Rating IP67
Wire Gauge (AWG) 26
Mounting Thread Size PG9
Color Silver
Contact Finish Gold Plated
Fastening Type Threaded Front
Mounting Style Panel Mount
Shell Finish Brass with Nickel Plating
Shell Size (mm) 12
Shielding No
Series CDM1270

Technical Docs

Datasheet 3D Model
