SJ1-3514-SMT-TR

SJ1-3514-SMT-TR

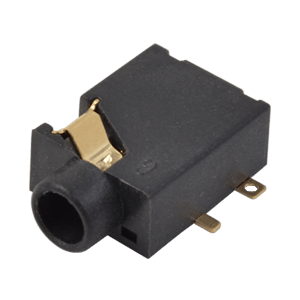

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 1 Internal Switch, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Surface Mount
Shielding No
Number of Conductors 3
Orientation Horizontal
Series SJ1-351X-SMT
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
