SJ1-3515-SMT-TR
SJ1-3515-SMT-TR
SJ1-3515-SMT-TR Alternate View
SJ1-3515-SMT-TR Alternate View

SJ1-3515-SMT-TR

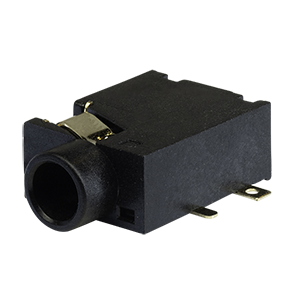

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 2 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Surface Mount
Shielding No
Number of Conductors 3
Orientation Horizontal
Series SJ1-351X-SMT
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
