AC-C5-R-S-B UK

AC-C5-R-S-B UK
AC-C5-R-S-B UK Alternate View

AC-C5-R-S-B UK

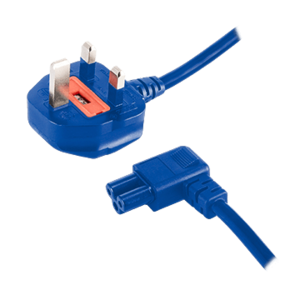

AC Power Cord United Kingdom, C5 for C6 inlet Right Angle, 0.75 mm, 1 M, Blue

Datasheet

Specifications

Type Description
Select
Connector 1 BS1363A
Connector 2 C5 Right Angle
Cable Length (mm) 1000
Wire Gauge (AWG) 18
Wire Gauge (mm) 0.75
Cable Style Round
Shielding No
Jacket Material PVC
Voltage Rating (Vac) 250
Current Rating (A) 2.5
Operating Temp Range (°C) -15 ~ 70
Color Blue
Series AC-C5-R UK
