AC-C5-R-L UK

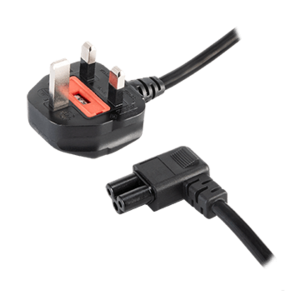

AC Power Cord United Kingdom, C5 for C6 inlet Right Angle, 0.75 mm, 3 M, Black
Specifications
| Type | Description | |
|---|---|---|
| Connector 1 | BS1363A |
|
| Connector 2 | C5 Right Angle |
|
| Cable Length (mm) | 3000 |
|
| Wire Gauge (AWG) | 18 |
|
| Wire Gauge (mm) | 0.75 |
|
| Cable Style | Round |
|
| Shielding | No |
|
| Jacket Material | PVC |
|
| Voltage Rating (Vac) | 250 |
|
| Current Rating (A) | 2.5 |
|
| Operating Temp Range (°C) | -15 ~ 70 |
|
| Color | Black |
|
| Series | AC-C5-R UK |
|
