EC252 E or F Series

EC252 E or F Series

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

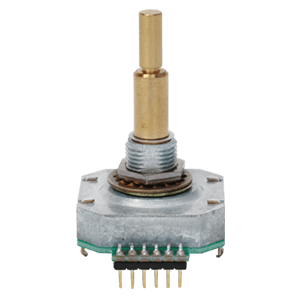

25 mm, 50 PPR, 3.3 Vdc Input, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Input Voltage (Vdc) 3.13 ~ 3.47
Shaft Length (mm) 20, 30
Operating Temp. (°C) 0 ~ 60
Speed, Max. (RPM) 120

Technical Docs

Other Resources

Customize Your Part

Configured Part Number
